Quick Details

  • Place of Origin: Henan, China (Mainland)
  • Brand Name: ZMS CABLE
  • Model Number: 1.5 mm2 cable
  • Insulation Material: PVC
  • Type: Low Voltage
  • Application: Construction
  • Conductor Material: Copper
  • Jacket: No
  • Color: Black or as per you requirement
  • Company nature: Manufacturer
  • Standards: IEC,ASTM,BS,GB,DIN
  • Certification: ISO
  • 1.5 mm2 cable Dimensions: 0.5~1000mm2
  • No. of Cores: single or multi-cores
  • Shield/Screen: Copper Tape, Copper Wire
  • Armoring Type: SWA, AWA, STA
  • Delivery time: On-time
  • Quality of products: High quality

Packaging & Delivery

Packaging Details wooden or steel drums for 1.5 mm2 cable
Delivery Time in 25 days

Product Description

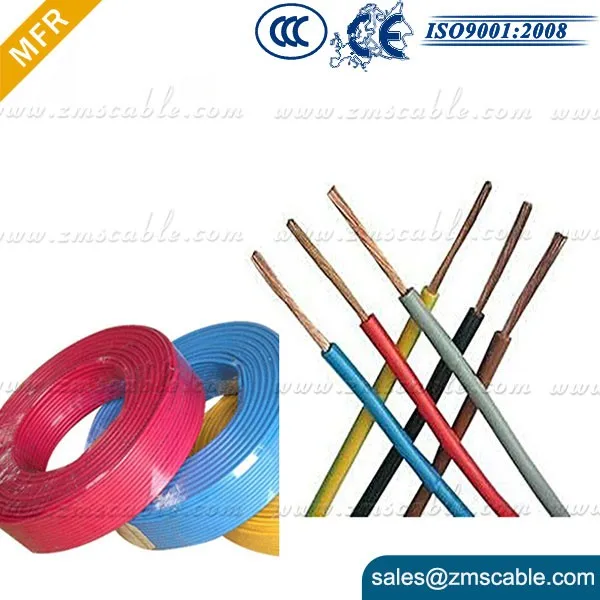

0.6/1kv single core copper conductor 630mm xlpe cable

Product Description
1.Application:
Fixed wiring ,civil power ,mobile equipment
2.Construction
Conductor type:
IEC 60228-2004 class 1 or class 2.
Nominal Cross-section area: 0.5~400mm2
PVC insulation
We can according to our client’s need and also provide technical data
3.Characteristic
Rated Voltage:
450/750V More-than 1.5mm2 single core conductor
300/500V Less-than 1.5mm2 single core and multicore conductor
300/300VLess-than 1.5mm2 multicore conductor
Test Voltage:
AC 1500V/5Min for 0.5~1mm2 multicore conductor
AC 2000V/5Min for 0.5~1mm2 single core and multicore conductor
AC 2500V/5Min Other.
Color of Insulation:
Red,Yellow,Green,Light blue,White,Black,Grey,Brown,Orange,Violet,Yellow/Green.
4.Standard
IEC 60227-2007
TypeNameLaying place and requirement

Long term

working
Temperature 0C

60227IEC01  05
BV
BLV

Copper conductor PVC insulated

wiresAluminum conductor

PVC insulated wires

Fixed laid indoors
Conduit etc.

     70
60227IEC07
(BV-90)

Heat resistant copper conductor

PVC insulated wire at 90 0C

Mainly be laid at the places of

high temperatureenvironment and

can be laid indoors ,conduits.



    90
BVR

Copper conductor PVC insulated

flexible cable

Be for laying permanent place where

flexible required.



    70
60227IEC10
(BVV) BVV

Copper conductor PVC insulated

PVC sheathed round wires

Fixed laid, fit for the places with

high mechanicalprotection and

moisture place, can be laid in the

air or underground.



     70

BLVV

Aluminum conductor PVC insulated

PVC sheathed round wires

BVVB

Copper conductor PVC insulated

PVC sheathed flat wires

BLVVB

Aluminum conductor PVC

insulated PVC sheathed

flat wires

60227IEC02(RV)
60227IEC06(RV)

Copper conductor PVC insulated

flexible connector wire

Mainly used at middle and light

style moving electronics,

home appliances, power and

lighting and the places

where flexible required




     70

60227IEC42(RVB)

Copper conductor PVC insulated

flat flexible connector wire

RVS


Copper conductor PVC insulated

flexible twisting connector wire

60227IEC52(RVV)
60227IEC53

Copper conductor PVC insulated

PVC sheathed

round flexible connector wire

60227IEC08
(RV-90)


Cu conductor heat resistant

PVC insulated flexible

connector wire at 90 0C

Mainly used at the places where

heat resistance is

required


     90





Packaging & Shipping



Packing : by wooden drums or Iron wooden drum
Shipping: LCL, 20GP' 40GP' 40HP'
Certifications

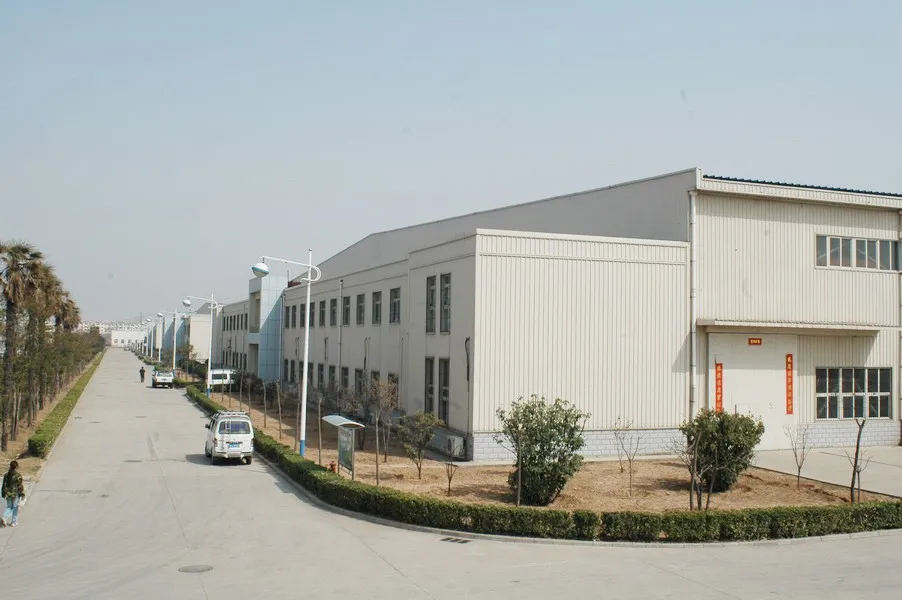

Factory Information



Company Information

Henan Zms Cable Import And Export Co., Ltd. is one of biggest professional electric wire and cable manufactuier in China,which integreated of design,producing,sales and service.CE and UL certification standards and approved by the relevant classification institutions.

Main pruducts:Power cable,0.6/1KV Aerial Bundled Cable(ABC Cable),Bare conductors,a.g.AAC,ACSR,AAAC,Different voltages of XLPE insulated cables,Armored cables,Control cables,Welding cable,Building wire,Rubber cables,PVC insulated wires and cables,etc
